Our Products

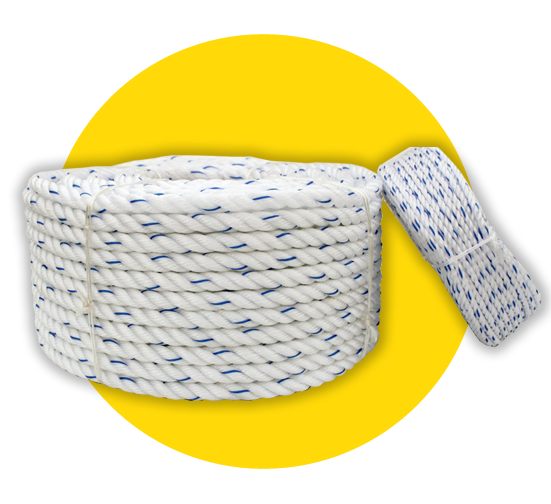

PP Danline Rope
Divine Industries coming with widest range of 3 Strand & 4 Strand Ropes made from High Density Poly Ethylene Monofilament Yarn (HDPE), Poly Propylene Monofilament Yarn (PPMF) & Poly Propylene Danline Yarn (PPD) for different applications such as Fishing, Shipping, Ports, Shipbuilding Yards, Stevedoring, Defence, Material Handling, Construction, Electricity Boards and various other Industrial Applications.
Characteristics:
-
High ultra-violet light resistance
-
Anti-abrasion
-
Stronger than Royal PP Mono Ropes
-
Cost effective & High strength
-
Better breaking strength than Aquatuf
Specifications (3-Strand) :
| SIZE | WEIGHT | Minimum Breaking Strength |
|
|---|---|---|---|
| Dia (mm) | Dia (inch) | kg/100m | kgf of tons KGF |
| 4 | 5/32 | 0.727 | 240 |
| 5 | 3/16 | 1.136 | 320 |
| 6 | 7/32 | 1.636 | 602 |
| 7 | 1/4 | 2.227 | 750 |
| 8 | 5/16 | 2.909 | 1,060 |
| 9 | 11/32 | 3.681 | 1,190 |
| 10 | 3/8 | 4.545 | 1,560 |
| 12 | 1/2 | 6.545 | 2,210 |
| 14 | 9/16 | 8.909 | 3,050 |
| 16 | 5/8 | 11.636 | 3,770 |
| 18 | 3/4 | 14.727 | 4,810 |
| 20 | 13/16 | 18.181 | 5,800 |
| 22 | 7/8 | 22 | 6,960 |
| 24 | 1 | 26.181 | 8,130 |
| 26 | 1 1/16 | 30.727 | 9,410 |
| 28 | 1 1/8 | 35.636 | 10,700 |
| 30 | 1 1/4 | 40.909 | 12,220 |
| 32 | 1 5/16 | 46.545 | 13,500 |
| 34 | 1 3/8 | 52.545 | 14,400 |
| 36 | 1 7/16 | 58.909 | 16,930 |
Other Specification
-
Tolerance: Up to 14 mm = + /– 8% » 16mm & above = + /– 5%
-

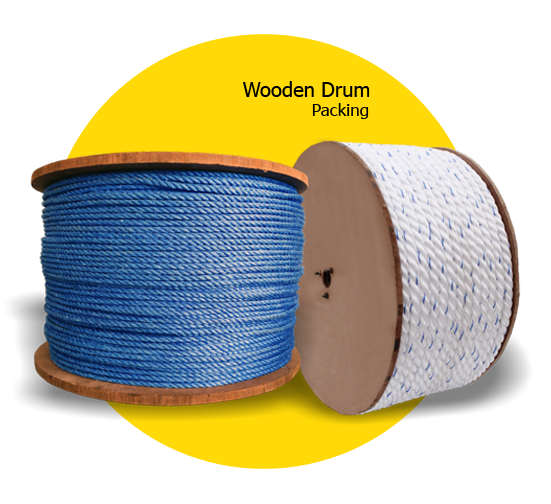

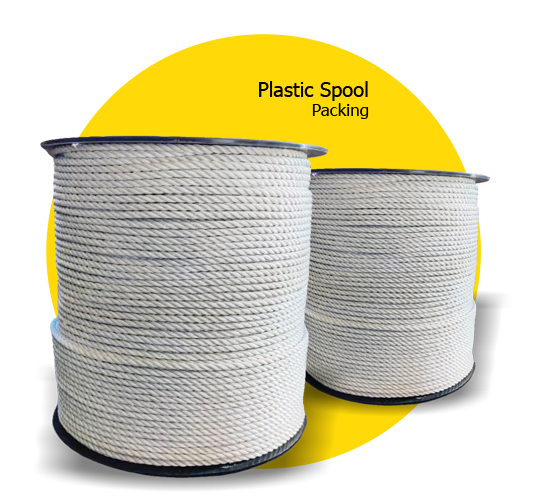

Std Packing: PE ropes are generally packed individually in plastic bags and then coils are packed in woven bags for shipping.
-
Coil Lengths: These ropes are available in 100/200/300 mtrs or yards or 300 / 600 / 1200 ft. (Long lengths are available on request.)
-

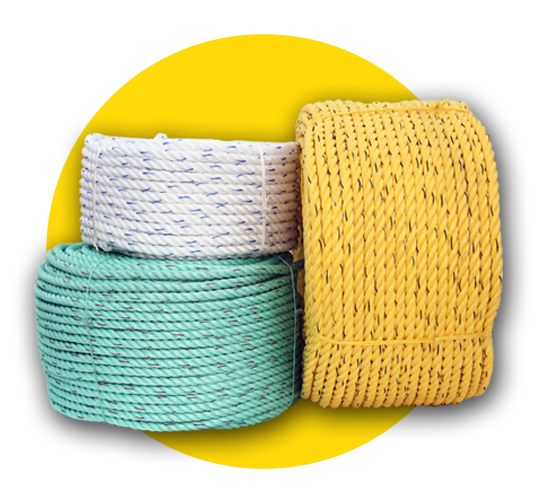

Colours: Yellow, Blue, Red, Green, Orange, White, Black. Brown.
-
Size: 2mm to 36mm (3-Strand)
16mm to 36mm (4-Strand)
Applications
-
Fishing & Marine (Aquaculture & Fish farming)
-
Industrial
-
Same breaking strength in dry or wet conditions
-
Please contact us for information regarding long lengths, special colours and different packing.
Note :
-
The minimum breaking load (MBL) should never be considered as the safe working load of the rope.
-
Breaking strength quoted relates to the new dry ropes in soft lay construction. In wet conditions these values may be lower.
-
Please contact us for information regarding long lengths, special colours and different packing.
